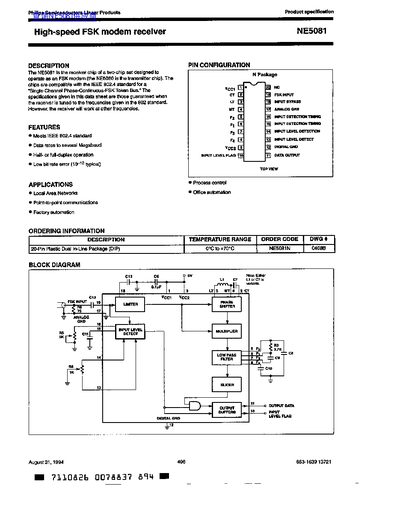

The NE5081 is a receiver chip designed as part of a two-chip set to operate as an FSK modem, where the NE5081 acts as the receiver and the NE5082 serves as the transmitter. The chips are compatible with the IEEE 802.4 standard for 'Single-Channel Phase-Continuous-FSK Token Bus' operation.
| Operating Temperature Range | 0 to +70 °C |
|---|---|
| Storage Temperature Range | -65 to +150 °C |
| Logic High Frequency (Typ) | 6.25 MHz |
| Supply Current (Max) | 50 mA |
It is designed to operate as an FSK modem receiver compatible with the IEEE 802.4 standard.
The device supports data rates up to several Megabaud.
