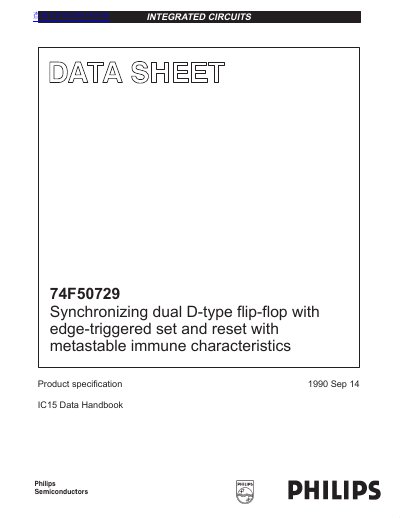

This file is the product specification of 74F50729 produced by Philips Semiconductors. It is a dual positive edge-triggered D-type flip-flop with edge-triggered set and reset and metastable immune characteristics. The product has a skew of less than 1.5 ns, high source current (IOH = 15mA), and is ideal for clock driver applications.
The Philips 74F50729 is a synchronizing dual D-type flip-flop featuring individual data, clock, set, and reset inputs. It is designed so that outputs never display a metastable state due to setup or hold time violations; instead, propagation delays may extend without glitching.
The device offers high source current (15mA) ideal for clock driver applications and operates in both commercial (0°C to +70°C) and industrial (-40°C to +85°C) temperature ranges. It is available in 14-pin plastic DIP and SO packages.
| Supply Voltage (Commercial) | +5V +/- 10% |
|---|---|
| Operating Temperature (Industrial) | -40°C to +85°C |
| Package Type | 14-pin plastic DIP or SO |
| High-level Output Current | -12 mA |
The outputs will not glitch or display a metastable state even if setup and hold time violations occur; propagation delays may only be extended.
Under specific test conditions, the MTBF is calculated to be approximately 480 years.
