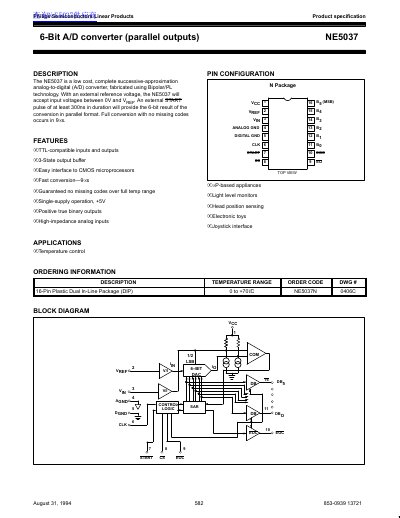

The NE5037 is a low cost, complete successive-approximation analog-to-digital (A/D) converter, fabricated using Bipolar/I2L technology. With an external reference voltage, the NE5037 will accept input voltages between 0V and VREF. An external START pulse of at least 300ns in duration will provide the 6-bit result of the conversion in parallel format. Full conversion with no missing codes occurs in 9µs.
The NE5037 is a low-cost, complete successive-approximation analog-to-digital (A/D) converter fabricated using Bipolar technology. It accepts input voltages between 0V and VREF and provides a 6-bit result in parallel format upon receiving an external START pulse. The device features TTL-compatible inputs and outputs, a 3-state output buffer, and guarantees no missing codes over the full temperature range.
| Resolution | 6 Bits |
|---|---|
| Operating temperature range | 0 to +70 °C |
| Storage temperature range | -65 to 150 °C |
| Maximum clock frequency | 1 MHz |
| Conversion time | 9 Clock cycles |
| Power supply voltage | +5V |
The NE5037 has a resolution of 6 bits.
The maximum clock frequency is 1 MHz.
Yes, it guarantees no missing codes over the full temperature range.
