74F38 is a quad 2-input NAND buffer (open collector) manufactured by Philips Semiconductors. It has an industrial temperature range available (–40°C to +85°C), a typical propagation delay of 7.0ns and a typical supply current (total) of 13mA.

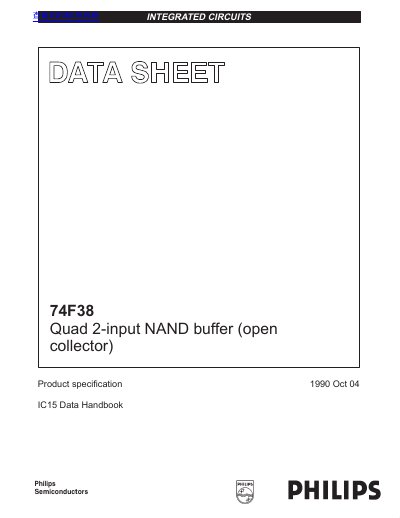

The document is a product specification datasheet for the Philips 74F38 integrated circuit. It describes the device as a Quad 2-input NAND buffer featuring an open collector output. The text details typical propagation delays, supply current, and logic functions.
| Propagation Delay (Typical) | 7.0ns |
|---|---|
| Supply Current (Total) | 13mA |
| Operating Temperature (Commercial) | 0 to +70 °C |
| Operating Temperature (Industrial) | -40 to +85 °C |
| Supply Voltage | 4.5 to 5.5 V |
The device functions as a Quad 2-input NAND buffer.
Yes, the industrial temperature range is available from -40°C to +85°C.
