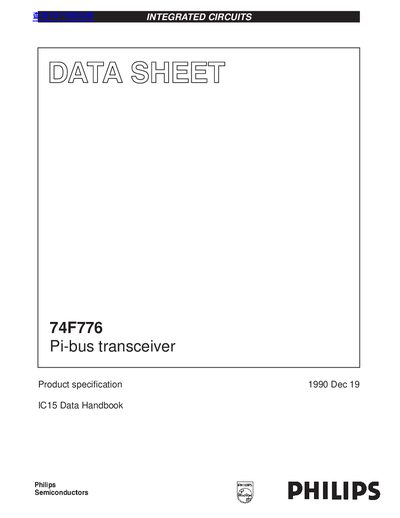

Philips 74F776 Pi-bus Transceiver Product Specification

this datasheet introduces the features and characteristics of the philips 74f776 pi-bus transceiver

Brand: Philips
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 12
File format: PDF
File size: 115 KB
Published: 06 July, 2012
Updated: 01 October, 2023
MD5 checksum: A96232078EADCFE7F2B3DA65B865C83B
PDF: Philips 74F776 Pi-bus Transceiver Product Specification PDF

About this manual

The Philips 74F776 is an octal bidirectional latched transceiver designed to provide an electrical interface for high-performance wired-OR bus systems. It is compatible with Pi-bus and IEEE 896 Futurebus standards and features built-in precision band-gap reference for improved noise immunity. The device includes high-speed operation capabilities and glitch-free power up/power down functionality.

What's inside

Features
Description
Ordering Information
Pin Configuration
Logic Diagram
Function Table
Absolute Maximum Ratings
Recommended Operating Conditions
DC Electrical Characteristics

Specifications

Operating Temperature (Commercial)	0°C to +70°C
Operating Temperature (Industrial)	-40°C to +85°C
Low-level Output Current (B Port)	100mA

Frequently asked questions

What standards is the 74F776 compatible with?

It is compatible with Pi-bus and IEEE 896 Futurebus standards.

What is the maximum current the B port outputs can sink?

The open collector drivers on the B port are designed to sink up to 100mA.

What is the operating temperature range for the industrial version?

The industrial temperature range operates from -40°C to +85°C.
