The 74F74 is a dual positive edge-triggered D-type flip-flop featuring individual data, clock, set, and reset inputs; also true and complementary outputs.

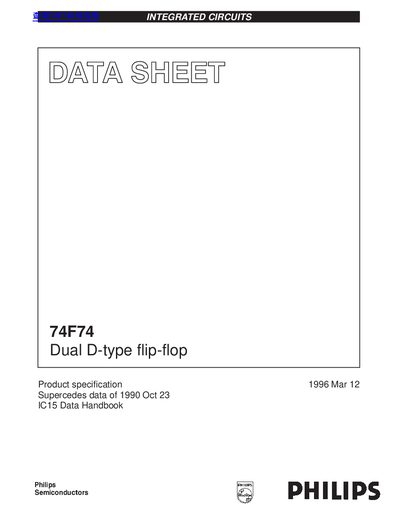

This document is a product specification datasheet for the Philips 74F74, a dual positive edge-triggered D-type flip-flop. It features individual data, clock, set, and reset inputs, along with true and complementary outputs. The device supports both commercial and industrial temperature ranges.
| Operating temperature (Industrial) | -40°C to +85°C |
|---|
Set (SD) and Reset (RD) are asynchronous active low inputs that operate independently of the clock input.
The maximum supply voltage is +7.0 V.
The maximum total supply current is 16 mA.
The maximum clock frequency is 125 MHz.
