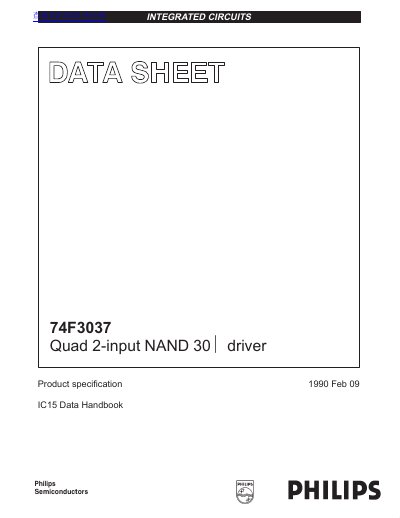

This document describes the features and characteristics of the 74F3037 Quad 2-input NAND 30Ω driver integrated circuit produced by Philips Semiconductors, including 30Ω line driver, high speed, facilitates incident wave switching, and industrial temperature range available.
The Philips 74F3037 is a high current line driver composed of four 2-input NAND gates. It is designed to handle transmission line effects on printed circuit boards when using fast edge rates. The device provides a 67mA output drive capability in the high state and 160mA in the low state, ensuring incident wave switching with a 30Ω load.
| Output drive capability (high state) | 67mA |
|---|---|
| Output drive capability (low state) | 160mA |
| Line driver impedance | 30Ω |
| Supply voltage (nominal) | 5.0V |
| Operating temperature (Industrial) | -40 °C to +85°C |
| Propagation delay (typical) | 2.0ns |
The drive capability is 67mA in the high state.
The drive capability is 160mA in the low state.
Yes, an industrial temperature range from -40 °C to +85°C is available.
