The document describes the product specifications of the 74F27 Triple 3-input NOR gate, including features such as industrial temperature range, typical propagation delay, and typical supply current.

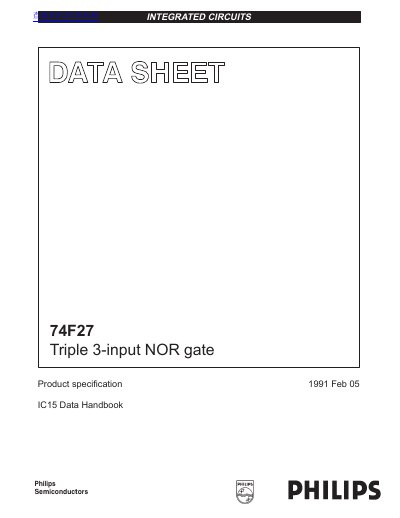

This document is a product specification datasheet for the Philips 74F27, an integrated circuit containing three independent 3-input NOR gates. It provides comprehensive technical data including logic diagrams, function tables, absolute maximum ratings, and recommended operating conditions for both commercial and industrial temperature ranges.
The datasheet details DC and AC electrical characteristics such as propagation delay, supply current, and output voltages under various test conditions. It also includes mechanical drawings and dimensional specifications for the available 14-pin plastic DIP (SOT27-1) and small outline (SOT108-1) packages.
| Number of Gates | Triple (3) |
|---|---|
| Supply Voltage Range (Commercial) | 4.5V to 5.5V |
| Operating Temperature (Industrial) | -40°C to +85°C |
The device functions as a triple 3-input NOR gate.
Each of the three gate sections has 3 data inputs.
The typical total propagation delay is 3.0 ns under these conditions.
