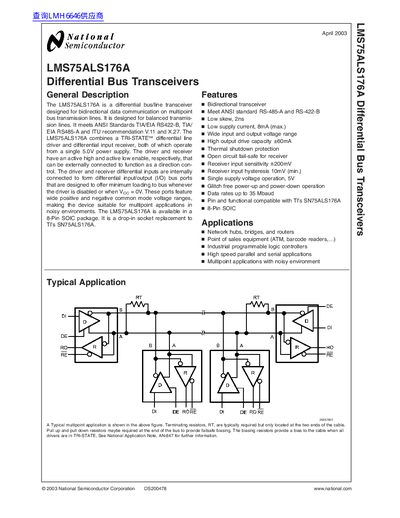

The LMS75ALS176A is a bidirectional data communications transceiver from TI that meets ANSI standards TIA/EIA RS422-B, TIA/ EIA RS485-A and ITU recommendation V.11 and X.27. It combines a TRI-STATE™ differential line driver and differential input receiver, both of which operate from a single 5.0V power supply. The driver and receiver have an active high and active low enable, respectively, that can be externally connected to function as a direction control. The driver and receiver differential inputs are internally connected to form differential input/output (I/O) bus ports that are designed to offer minimum loading to bus whenever the driver is disabled or when VCC = 0V. These ports feature wide positive and negative common mode voltage ranges, making the device suitable for multipoint applications in noisy environments.
The LMS75ALS176A is a bidirectional differential bus/line transceiver designed for balanced transmission on multipoint lines. It meets ANSI standards TIA/EIA RS-422-B, TIA/EIA RS-485-A, and ITU recommendation V.27/V.28. The device combines a TRI-STATE differential line driver and a differential input receiver operating from a single 5.0V supply.
| Data Rate | 35 Mbaud |
|---|---|
| Supply Voltage | 5.0V |
| Max Supply Current | 8mA |
| Output Drive Capacity | +60mA |
Yes, it is pin and functional compatible with TI's SN75ALS176A.
Typical applications include network hubs, bridges, routers, point of sales equipment, and industrial programmable logic controllers.
