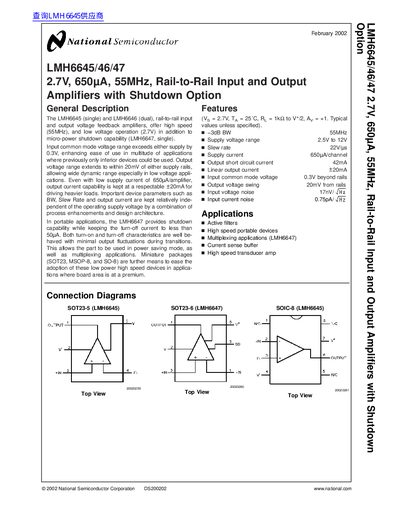

National Semiconductor LMH6645/46/47 2.7V 650 A 55MHz Rail-to-Rail Input Output Amplifiers with Shutdown Option handbook

LMH6645/46/47 2.7V, 650µA, 55MHz, Rail-to-Rail Input and Output Amplifiers with Shutdown Option are low voltage operational amplifiers with high input common mode range, high output voltage range, low supply current, low shutdown current and miniature packages.

Brand: National Semiconductor
Category: amplifier
Document type: Datasheet
Language: English
Pages: 19
File format: PDF
File size: 627 KB
Published: 05 July, 2012
Updated: 30 September, 2023
MD5 checksum: 87B41A48300096963655E73686CD8FB1
PDF: National Semiconductor LMH6645/46/47 2.7V 650 A 55MHz Rail-to-Rail Input Output Amplifiers with Shutdown Option handbook PDF

About this manual

The LMH6645 (single), LMH6646 (dual), and LMH6647 (single with shutdown) are rail-to-rail input and output voltage feedback amplifiers. They offer high speed with a -3dB bandwidth of 55MHz and low voltage operation starting at 2.7V. The devices feature an input common mode voltage range that exceeds either supply by 0.3V and an output voltage swing extending to within 20mV of either supply rail.

What's inside

General Description
Features
Applications
Connection Diagrams
Ordering Information
Absolute Maximum Ratings
Operating Ratings
Electrical Characteristics
Soldering Information

Specifications

Supply Voltage Range	2.5V to 12V
Slew Rate	22 V/us
Output Short Circuit Current	42mA
Input Common Mode Voltage Range	0.3V beyond rails
Output Voltage Swing	20mV from rails
Output Current Capability	+20mA

Frequently asked questions

What is the minimum supply voltage for the LMH6645/46/47?

The supply voltage range is 2.5V to 12V.

What are the available package types?

The devices are available in SOT23, MSOP-8, and SO-8 packages.
