Technical specifications and construction details for General 6300 series pneumatic grippers, covering angular and parallel styles with various bore sizes.

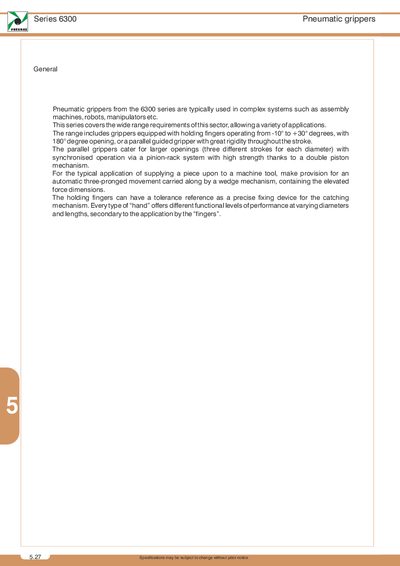

This document provides technical data for the General Pneumatic Grippers from the 6300 series. The range includes standard versions of both angular (180° opening) and parallel guided grippers designed for use in assembly machines and robots. Angular models feature holding fingers operating between -10° to +30°, while parallel models offer synchronized operation via a pinion-rack system with high rigidity.
| Working pressure (double acting) | 1 - 6 bar |
|---|---|
| Opening angle range | -10° to +30° degrees |
| Maximum operating frequency (Ø10-Ø25) | cycles/minute |
The weight of the Series 6310 gripper with a bore of Ø10 is 55 grams.
