PEMD3; PIMD3; PUMD3 NPN/PNP resistor-equipped transistors; R1 = 10 kΩ, R2 = 10 kΩ is a product of Philips Semiconductors. Products feature built-in bias resistors, simplify circuit design, reduce component count, and reduce pick and place costs. Products are used for low current peripheral driver, IC input control, and general-purpose transistor replacement in digital applications.

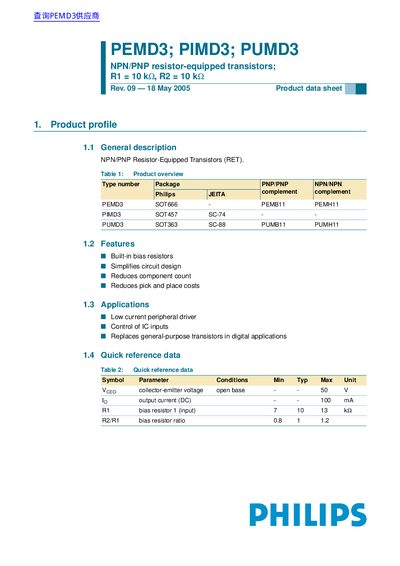

This document is a product datasheet for the Philips PEMD3, PIMD3, and PUMD3 series of NPN/PNP Resistor-Equipped Transistors (RET). These devices feature built-in bias resistors designed to simplify circuit design and reduce component count. The transistors are suitable for low current peripheral driver applications and controlling IC inputs.
| Collector-emitter voltage (open base) | 50 V |
|---|---|
| Output current (DC) | 100 mA |
| Bias resistor R1 value | 10 k Ω |
| Storage temperature range | -65 to +150 °C |
They feature built-in bias resistors which simplify circuit design and reduce component count.
They are used as low current peripheral drivers and for controlling IC inputs.
