PUMD6 is a bipolar transistor with different polarities, each with a built-in bias resistor. It simplifies circuit design and reduces the number of components and board space. It is especially suitable for space reduction in interface and driver circuits, as well as inverter circuit configurations without the use of external resistors.

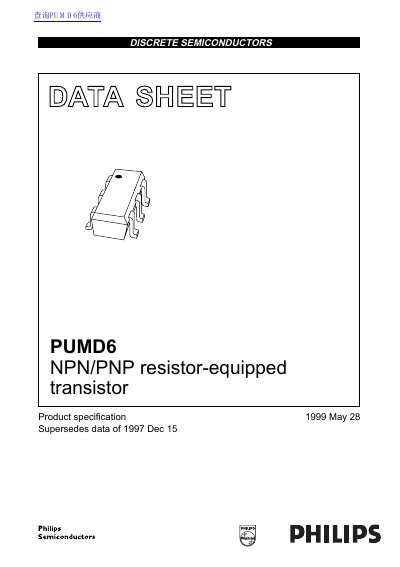

The document describes the Philips PUMD6, a discrete semiconductor device featuring NPN and PNP transistors integrated into a single SC-88 (SOT363) plastic package. Each transistor includes a built-in bias resistor (R1), typically 4.7 kΩ, designed to simplify circuit design by reducing the number of external components required for inverter configurations.
| Package Type | SC-88 (SOT363) |
|---|---|
| Collector-Base Voltage | -50 V |
| Collector-Emitter Saturation Voltage | 100 mV |
| Input Resistor Value | 3.3 to 6.1 kΩ |
| Collector Capacitance (NPN) | 2.5 pF |
The typical value for the built-in bias resistor R1 is 4.7 kΩ.
It is especially suitable for space reduction in interface and driver circuits and inverter circuit configurations.
