PUMX1 is a NPN double transistor produced by PHILIPS company, with low current (maximum 100 mA), low voltage (maximum 40 V) and small size. It can be used in general switching and amplification circuits.

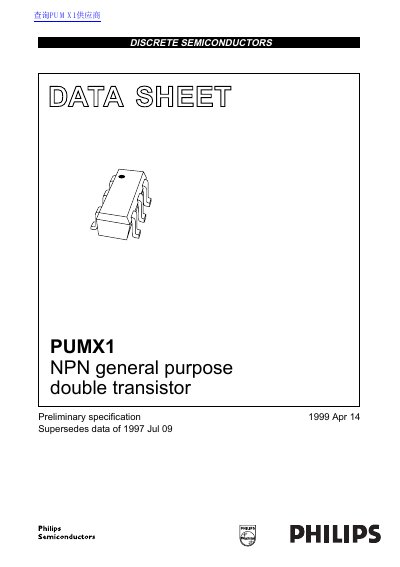

The Philips PUMX1 is an NPN general purpose double transistor designed for low current (max. 100 mA) and low voltage (max. 40 V) applications. It features two independently operating transistors in a single SC-88 plastic package, which reduces the number of components and board space required. The device is suitable for general purpose switching and amplification tasks.
| Collector current (DC) | 100 mA |
|---|---|
| Peak collector current | 200 mA |
| Collector-emitter voltage | 40 V |
| DC current gain | 120 |
| Transition frequency | 100 MHz |
| Package type | SC-88 plastic package |
The maximum DC collector current per transistor is 100 mA.
The device can dissipate a maximum of 300 mW under these conditions.
The thermal resistance from junction to ambient is 416 K/W when mounted on an FR4 board.
