PIMZ2 and PUMZ2 are Philips NPN/PNP dual transistors featuring simplified circuit design, reduced component count and reduced pick and place costs. They are suitable for general purpose switching and amplification applications.

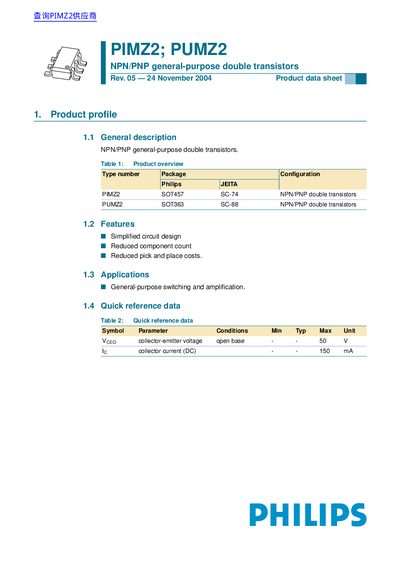

The document is a product data sheet for the Philips PIMZ2 and PUMZ2, which are NPN/PNP general-purpose double transistors designed for simplified circuit design and reduced component counts. These devices are suitable for general-purpose switching and amplification applications.
| Collector-emitter voltage (open base) | 50 V |
|---|---|
| Collector current (DC) | 150 mA |
| Collector-base voltage (open emitter) | 60 V |
| Emitter-base voltage (open collector) | 7 V |
| Peak collector current | 200 mA |
| Peak base current | 100 mA |
| Total power dissipation (SOT457) | 200 mW |
| Total power dissipation (SOT363) | 180 mW |
| Storage temperature | -65 +150 °C |
| Junction temperature | 150 °C |
They are intended for general-purpose switching and amplification.
The maximum DC collector current is 150 mA.
The devices are available in SOT457 (SC-74) and SOT363 (SC-88) packages.
