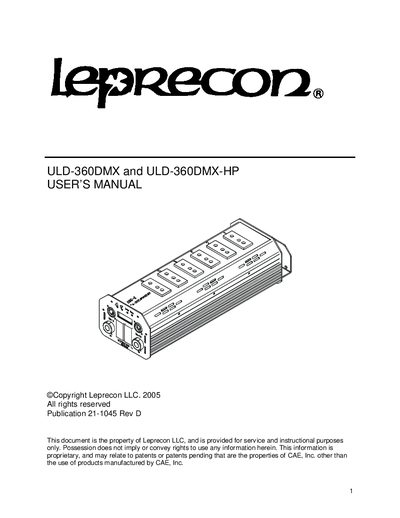

This document is a ULD-360DMX and ULD-360DMX-HP user manual, which introduces the features and characteristics of the product, installation, and usage methods.
The Leprecon ULD-360DMX is a portable dimmer designed for temporary and portable dimming requirements, featuring a menu-based interface for configuration. It is intended for use with conventional incandescent fixtures and supports DMX 512 control. The device includes a single breaker for the pack limit and offers various channel modes including linear, non-dimming, and fluorescent output.
| Power Connection | 120 VAC 60 Hz |
|---|---|
| Ambient Temperature | less than 40 degrees Celsius |
| Pack Limit (ULD-360DMX) | 15 Amps |
| Pack Limit (ULD-360DMX-HP) | 30 amps total |
| DMX Standard | DMX 512 1990 |
Depress and hold the ENTER switch while turning on the first breaker.
Shielded twisted pair approved for EIA-422/EIA-485 use is recommended.
