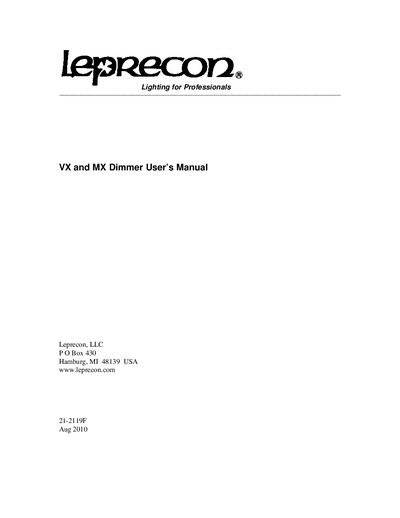

This document is the Leprecon VX and MX Dimmer User's Manual, which introduces the features and characteristics of the product.
The Leprecon VX and MX dimmers are designed for the lighting industry, featuring modular electronics that allow servicing from the front panel. They support simultaneous DMX-512 and analog control inputs with a highest-takes-precedence logic, ensuring accurate output tracking across multiple channels. The system includes programmable non-dim operation for the VX model and utilizes fast-response magnetic breakers for reliable operation.
| Nominal line voltage | 115 VAC at 60 Hz |
|---|---|
| VX / MX 2400 Power per leg | 80 amps |
| VX / MX 1200 Power per leg | 40 amps |
| Over voltage protection threshold | 140 volts AC |
| DMX compatibility | DMX 512 |
Yes, the dimmer and control electronics can be serviced from the front panel without removing the dimmer from the rack or enclosure.
The Over voltage LED lights up, and all dimmer control is disabled until the voltage is reduced to a safe level.
Fans are controlled by a thermostat to keep noise to a minimum, accelerating to full speed only when the internal temperature increases.
