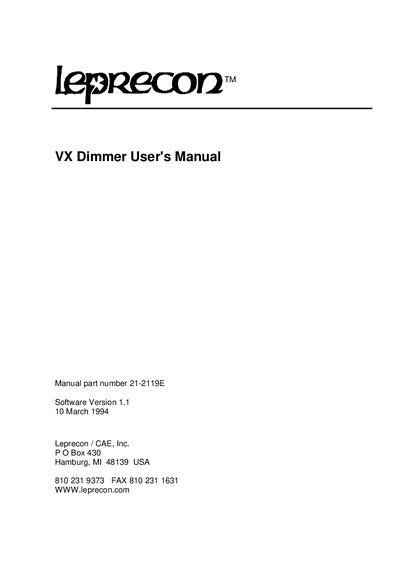

Leprecon VX Dimmer User's Manual

This manual introduces the basic functions and usage of the Leprecon VX dimmer.

Brand: Leprecon
Document type: User Manual
Language: English
Pages: 12
File format: PDF
File size: 34 KB
Published: 04 July, 2012
Updated: 30 September, 2023
MD5 checksum: CAE4E1306F3A0BC18F40AD888738908B
PDF: Leprecon VX Dimmer User's Manual PDF

About this manual

The Leprecon VX Dimmer is a modular dimming system designed for the lighting industry, featuring flexible digital technology that allows simultaneous DMX-512 and analog control. It includes standard features such as front-panel serviceable electronics, ten non-volatile scene memories, and temperature-controlled fan cooling to ensure reliable operation.

What's inside

General Description
Standard Features
Installing Options
Power Requirements
Control Input
Dimmer Circuit Controls
Scene Storage
Service and Maintenance

Specifications

VX 2400 Power (per leg)	80 amps per leg of 3 phase power
VX 1200 Power (per leg)	40 amps per leg of 3 phase power
VX 3000 Power (per leg)	108 amps per leg of 3 phase power
Nominal line voltage	115 VAC at 60 Hz
Over voltage protection threshold	140 volts AC

Frequently asked questions

What is the nominal line voltage for the VX dimmer?

The nominal line voltage is 115 VAC at 60 Hz.

How many scenes can the VX dimmer store?

The VX control card retains 10 scenes for backup or use without a controller.

What happens if the voltage exceeds 140 volts AC?

The over voltage protection disables all dimmer control and ignores input from controllers.
