Leprecon LP-250 Series Operational Instruction Booklet

This manual introduces the functions and characteristics of the Leprecon LP-250 series analog lighting controller.

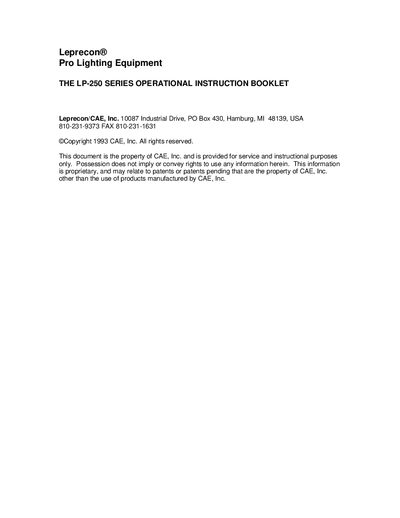

Leprecon LP-250 Series Operational Instruction Booklet - cover page
Brand
Leprecon
Category
Other Electronics
Document type
User Manual
Language
English
Pages
8
File format
PDF
File size
17 KB
Published
04 July, 2012
Updated
30 September, 2023
MD5 checksum
9BEEA59EBDFCC516E2029D8DB7AA0BE4

About this manual

The Leprecon LP-250 series includes the LP-250 6 channel and the LP-255 12 channel analog lighting controller. The controls on these single scene control boards can be broken into 5 basic sections: a 6 channel chase, a bump system, an output trim section, a master section, and an individual channel adjustment section. The controller uses a power source of 105-125 VAC 50-60 HZ and provides a variable DC voltage (0-10V nominal) from each channel.

What's inside

  • Power Up
  • Trim Adjustment
  • Chaser
  • Bump
  • Master
  • Control Channels
  • Trim
  • LP 250 Parts List
  • LP 255 Parts List

Specifications

Power Source105-125 VAC 50-60 HZ
Output Voltage0-10V nominal
Channels (LP-250)6 channel
Channels (LP-255)12 channel
Output Connector (LP-250)1 8 pin male jones output connector
Output Connector (LP-255)2 8 pin jones connectors
Supply Voltage (Pin 7)28 volt DC

Frequently asked questions

What is the factory trim adjustment?

The factory trim adjustment is 10 volts.

What is the factory minimum output voltage adjustment?

The minimum output voltage is factory adjusted to zero volts.

What happens when the bump switch is in the 'solo' position?

The channel bumps to full intensity and the controller blackouts all channels in the 'X' and 'Y' scenes.
