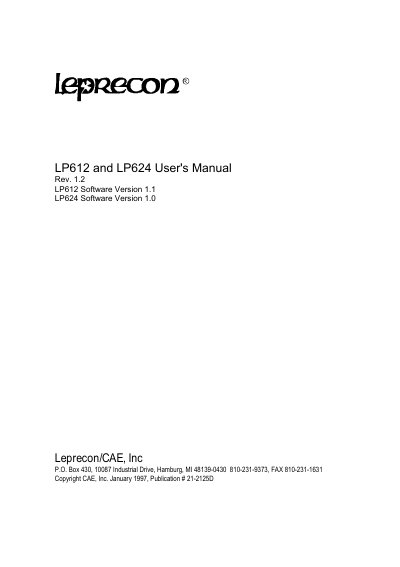

This manual introduces the operation methods of LP612/LP624, including preset memory, programming, channel setting, etc.
The Leprecon/CAE LP612 and LP624 are low-cost, high-quality control consoles designed for managing stage lighting. They feature two manual preset scenes (X and Y), real-time preset memories with four pages, a cue stack system supporting up to 50 programmable cues, and chaser functions with fixed or custom patterns.
The document details the setup process including power requirements for Microplex, DMX 512, and analog outputs. It provides comprehensive instructions on programming presets, recording and editing chase sequences, managing cue stacks with crossfading capabilities, and troubleshooting startup errors.
| Power Supply (DMX/Analog) | 12VAC at 800 milliamps |
|---|---|
| Microplex Output Connector | three pin XLR connector |
| DMX 512 Connector | standard 5 pin XLR female connector |
| Analog Output Voltage | 0-10 volt analog outputs |
| Cue Stack Capacity | 50 programmable cues |
An external supply rated for 12VAC at 800 milliamps must be used.
No, using microphone cable for DMX 512 is not recommended.
