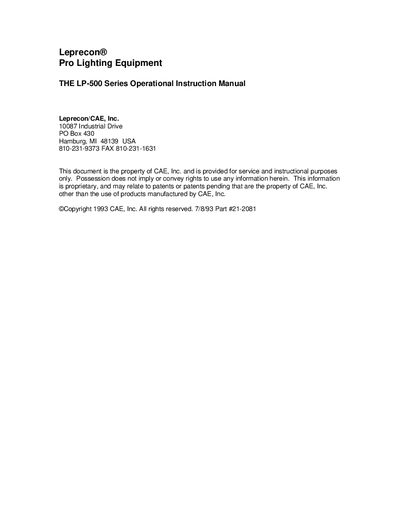

This document provides operational instructions for the Leprecon® Pro Lighting Equipment LP-500 series. The series is a standard analog lighting controller that consists of 6 basic sections, including a 6-channel chase, a bump system for momentary stage appearance changes, an output trim section, a master section, a dipless crossfade, and an individual channel adjustment section. The LP 500 series also features a 12-volt dimmable gooseneck work lamp. This controller uses a power source of 105-125 VAC 50-60 HZ and provides continuous DC voltage across all channels.
The Leprecon LP-500 Series is a standard analog lighting controller designed for stage lighting applications. It features a 6-channel chase system, a bump function for momentary look changes, and a 12-volt dimmable gooseneck work lamp. The unit operates on a 105-125 VAC 50-60 Hz power source and provides a continuous DC voltage output.
| Power Source | 105-125 VAC 50-60 HZ |
|---|---|
| Output Type | Continuous DC voltage |
| Work Lamp Voltage | 12 volt |
| Work Lamp Wattage | 2.4 and 5 watt |
| Factory Trim Adjustment | 10 volts |
The factory trim adjustment is set to 10 volts.
Bring channel one down to maximum output while keeping other channels at maximum, then turn the 'min' pot counterclockwise to near zero.
