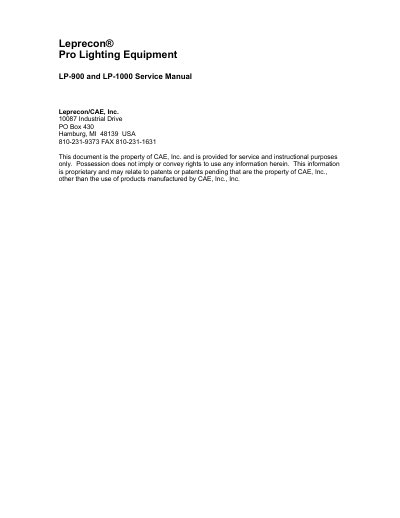

This document is the service manual for Leprecon® Pro Lighting Equipment LP-900 and LP-1000. It provides specifications, operating precautions, and instructions for repairs and maintenance.
This document is the official service manual for Leprecon Models LP-900 and LP-1000, which are portable lighting control consoles compatible with most dimming systems. Designed for road use, these consoles utilize modular electronics to simplify troubleshooting and repair.
The manual provides detailed technical documentation including operating precautions regarding system grounding, procedures for output voltage trimming, and comprehensive repair and maintenance instructions. It includes schematics and parts lists for various internal modules such as the power supply, grand master, crossfader, submaster, and chaser.
| Power Input Voltage | 105-125 VAC @ 50/60 Hz |
|---|---|
| Maximum Output Voltage | Adjustable 5-15 volts |
| Minimum Output Voltage | Adjustable 0-3 volts |
| Maximum Output Current | 15 mA/channel |
| Dimensions (LP-900) | 30 7/8” W x 18 %4” D x 3 7/8” H |
| Weight (LP-1000) | 40 lbs. |
A DC volt meter and a small slot screwdriver with a 1/8” blade.
Connect an ohmmeter between your neutral and ground; if you read other than infinite resistance, there is a fault.
Do not use tuner or contact cleaners containing abrasives, as they are suitable for switches only.
