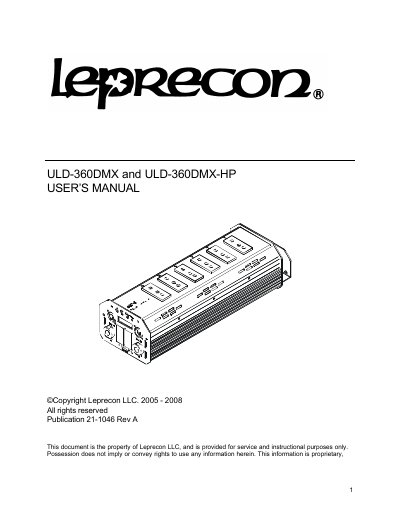

Leprecon ULD-360DMX and ULD-360DMX-HP User's Manual
The Leprecon ULD-360DMX and ULD-360DMX-HP are portable dimmers designed for temporary and portable dimming requirements, particularly for conventional incandescent fixtures. The ULD-360DMX-HP model features two independent power lines (A and B) to control up to six channels, while the standard ULD-360DMX has a single line. Both models utilize a menu-based interface for configuration and support DMX 512 1990 control.
Read onlineLeprecon ULD-360DMX specifications
| Power Connection | 120 VAC 60 Hz |
|---|---|
| Ambient Temperature | less than 40 degrees Celsius |
| Power Capacity (Standard) | 15 Amps |
| Power Capacity (HP) | 30 amps total |
| DMX Standard | DMX 512 1990 |
All Leprecon ULD-360DMX documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I reset the ULD-360 to default values?
Depress and hold the ENTER switch while turning on the first breaker.
What is the default start address for the ULD dimmer?
The default start address is 001.
How do I reset the ULD-360 to factory settings?
Depress and hold the ENTER switch while turning on the first breaker.
What is the recommended cable type for DMX connections?
Shielded twisted pair approved for EIA-422/EIA-485 use is recommended.
