The document describes the features and characteristics of the IDEAL Shielded Twisted Pair (STP) Cable Stripping System. The STP system is a programmable bench top machine that accurately removes the outside jacket from shielded twisted pair cable. It addresses occupational ergonomic needs by offering an alternative to manual stripping methods known to have contributed to cumulative tissue trauma.

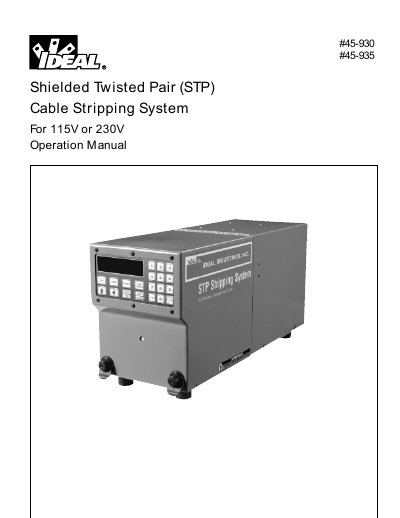

This manual covers the IDEAL Shielded Twisted Pair (STP) Cable Stripping System, a programmable bench-top machine designed to accurately remove cable jackets. It addresses ergonomic needs by automating the stripping process for cables up to 0.3125 inches in diameter. The system features programmable strip lengths, adjustable heat, speed, and pressure settings, and can store up to 500 user-defined batch programs.
| Maximum cable diameter | 0.3125 inches |
|---|---|
| Strip length range | 1-1/4 inches to 6.00 inches |
| Minimum cycle time | 5 seconds |
| Memory capacity | 500 programs |
| Voltage (Model #45-930) | 115V AC 4A 60 Hz |
| Voltage (Model #45-935) | 230V AC 2A 50 Hz |
| Air pressure requirement | 100 PSI |
The STP system can strip cables up to a maximum diameter of 0.3125 inches.
Model #45-930 operates on 115V AC at 4A and 60 Hz.
The strip length can be adjusted to a minimum of 1-1/4 inches.
