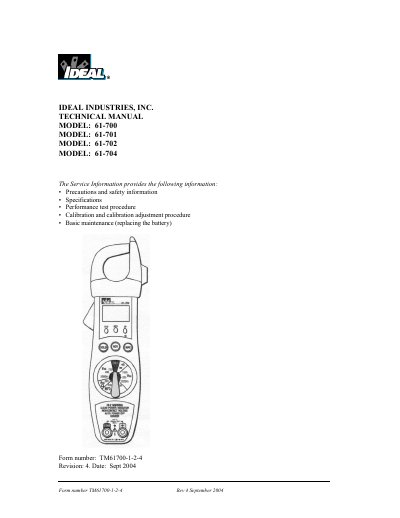

IDEAL INDUSTRIES INC. TECHNICAL MANUAL MODEL: 61-700 MODEL: 61-701 MODEL: 61-702 MODEL: 61-704

This document is a technical manual of IDEAL INDUSTRIES, INC., providing information on the technical specifications, performance test, calibration adjustment procedure, and basic maintenance (battery replacement) for models 61-700, 61-701, 61-702, 61-704.

Brand: IDEAL
Category: multimeter
Document type: Service Manual
Language: English
Pages: 11
File format: PDF
File size: 420 KB
Published: 04 July, 2012
Updated: 29 September, 2023
MD5 checksum: 781415E939147F21CB38DC560B04943C
PDF: IDEAL INDUSTRIES INC. TECHNICAL MANUAL MODEL: 61-700 MODEL: 61-701 MODEL: 61-702 MODEL: 61-704 PDF

About this manual

This document serves as a technical manual for the Ideal Industries 61-700 series of digital multimeters, specifically models 61-700, 61-701, 61-702, and 61-704. It is intended for qualified personnel to perform verification tests and calibration procedures on these instruments.

What's inside

Precautions and Safety Information
Indicator Functions
Certifications and Compliance
General Specifications
Ranges and Accuracy
Performance Verification
Calibration
Replacing the Battery

Specifications

Display	3½ Digit LCD display
Display Count	2000 count
Operating Environment	0°C to 50°C
Power Source	9V Battery (NEDA 1604)
Battery Life	300 hours typical (alkaline)
Auto Power Off	Approximately 60 minutes
Weight	Approximately 13.4 oz. or 430g

Frequently asked questions

Who is qualified to perform verification tests or calibration?

Only qualified personnel should perform these procedures to avoid shock or injury.

What is the minimum battery voltage required before testing?

The battery must measure a minimum of 7.5V DC before beginning performance tests.

How often is it recommended to calibrate the meter?

It is recommended that all Ideal meters undergo calibration on an annual basis.

Download PDF (420 KB)
