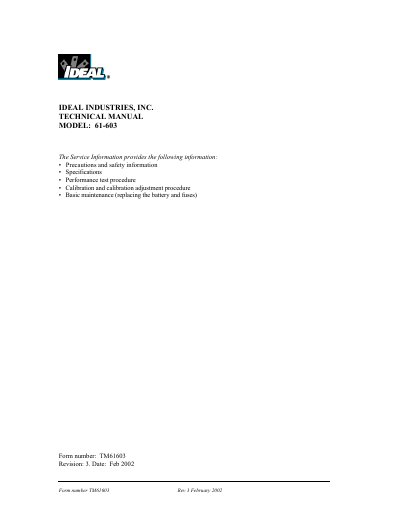

This document contains information about the specifications, performance test, calibration, basic maintenance (replacing the battery and fuses) of the 61-603.
This document is a technical service manual for the Ideal 61-603 digital multimeter. It provides essential information for qualified personnel, including safety precautions, general specifications, and performance verification limits. The manual details the procedures for calibrating the device and performing basic maintenance tasks such as replacing the battery and fuses.
| Display | 3½ Digit LCD display |
|---|---|
| Display Count | 2000 count, maximum reading 1999 |
| Sampling Rate | 3 time/second |
| Operating Environment | 0°C to 40°C |
| Power Source | 9V Battery (NEDA 1604) |
| Battery Life | 150 hours typical (alkaline) |
| Fuse Rating | 500mA, 250V fast acting fuse |
| Dimensions | 5.0" H X 2.8" W X 1.4" D |
| Weight | Approximately 7.0 oz. or 200g |
| AC Voltage Accuracy | 1.0% ± 4 digits |
| DC Voltage Accuracy | 0.5% ± 2 digits |
| DC Current Accuracy | 1.0% ± 1 digit |
| Resistance Accuracy | 1.2% ± 3 digits |
A 500mA, 250V fast acting fuse is required, with IDEAL #F-7 Type recommended.
The battery must measure a minimum of 7.5V DC before beginning performance tests.
It is recommended that all Ideal meters undergo the calibration procedure on an annual basis.
Only R47 needs to be adjusted to set the display to 1.900V DC.
