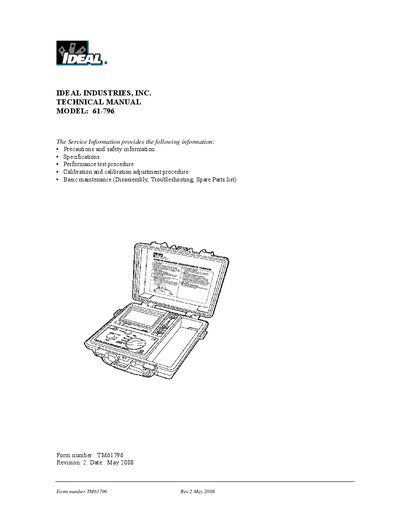

IDEAL 61-796 Earth Ground Resistance Tester Service Manual

This document is the technical manual of Ideal Industries Company 61-796 Three Pole Ground Resistance Tester, which contains the product's precautions and safety information, specifications, performance test procedure, calibration and calibration adjustment procedure, basic maintenance (disassembly, troubleshooting, spare parts list) and other information

Brand: IDEAL
Category: Other Electronics
Document type: Service Manual
Language: English
Pages: 11
File format: PDF
File size: 633 KB
Published: 04 July, 2012
Updated: 30 September, 2023
MD5 checksum: 56B9C1D326544A378AA3DB38A90F9B37
PDF: IDEAL 61-796 Earth Ground Resistance Tester Service Manual PDF

About this manual

This document is a technical service manual for the IDEAL 61-796 Three Pole Ground Resistance Tester. It provides detailed instructions for qualified personnel regarding safety precautions, general specifications, and required standards for testing the instrument. The manual outlines procedures for verifying battery, frequency, resistance, and AC voltage performance.

What's inside

Introduction
Precautions and Safety Information
Specifications
Performance Verifications
Disassembly and Setup For Calibration
Calibration
Troubleshooting
Spare Parts List

Specifications

Display	LCD 3 % with 2000 counts
Operation Frequency	820Hz to 1.6kHz at approx. 2mA
Earth Resistance Range	200Y/2000/2000Q
Max Earth Voltage	0-200V AC, 40-500Hz
Power	8 x 1.5V AA Batteries
Dimensions	8.3"H x 8.3"W x 4.0"D

Frequently asked questions

Who is qualified to perform verification tests or calibration?

Only qualified personnel should perform these procedures to avoid shock or injury.

What is the minimum battery voltage required?

The battery pack must measure a minimum of 11.5V DC.

What is the required output frequency for the 20Q range?

The output frequency should be 820Hz +15Hz (805Hz~835Hz).
