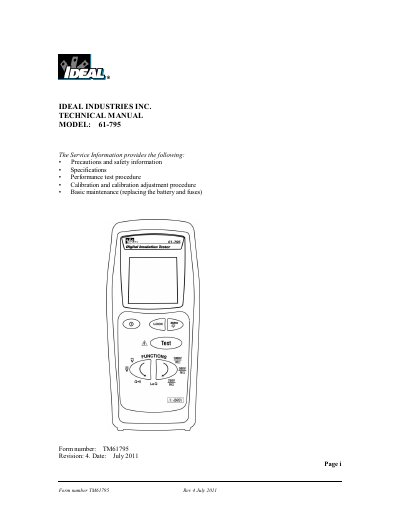

IDEAL 61-795 Hand-held Insulation Tester Service Manual

Instruction manual for the 61-795 model, containing safety information, product specifications, performance testing procedures, calibration and calibration adjustment procedures, basic maintenance (replacing batteries and fuses) and other information

Brand: IDEAL
Category: Other Electronics
Document type: Service Manual
Language: English
Pages: 10
File format: PDF
File size: 443 KB
Published: 04 July, 2012
Updated: 30 September, 2023
MD5 checksum: EE504A58852CE31492E398CF6EE42D9E
PDF: IDEAL 61-795 Hand-held Insulation Tester Service Manual PDF

About this manual

This document serves as a technical manual for the IDEAL 61-795 hand-held insulation tester. It provides essential service information including precautions, safety guidelines, and detailed specifications for the device. The manual outlines performance verification procedures to ensure the instrument functions correctly and lists the required equipment for these tests.

What's inside

Precautions and Safety Information
Required Equipment
Performance Verification
Calibration
Replacing the Battery
Replacing Fuses
Circuit Board Drawing

Specifications

Fuse Type	BBS 1A/600V
Fuse Interrupting Rating	10kA
Battery Type	1.5×6 NEDA 15F
DC Voltage Range	0-1000V dc
AC Voltage Range	0-750V ac
Resistance Range	0.01Ω ~ 330M
Capacitance Range	1pF ~ 1.1mF

Frequently asked questions

What equipment is required for performance verification?

A calibrator with AC Voltage Range 0-750V ac, DC Voltage Range 0-1000V dc, and specific accuracy levels is required.

How often should the instrument be calibrated?

It is recommended that all IDEAL meters undergo the calibration procedure on an annual basis.

What type of batteries are used in the 61-795?

The device uses six 1.5V alkaline batteries (NEDA 15F / IEC R6 / JIS UM-3).
