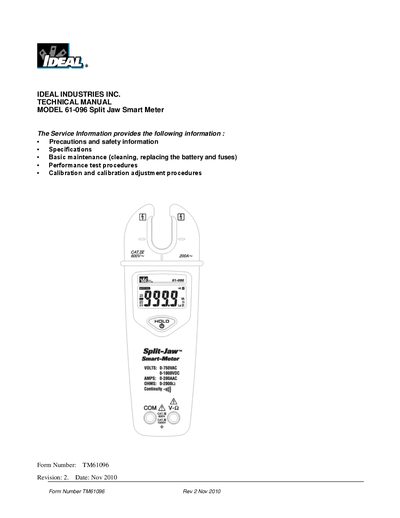

This document is a technical service manual for the Ideal Industries 61-096 Split-Jaw Smart Meter. It provides essential information for qualified personnel regarding precautions, safety symbols, and general specifications such as display count, power source, and environmental limits.
The guide details basic maintenance tasks including opening the meter case, replacing batteries, and fuses. Furthermore, it outlines specific performance test procedures for voltage, resistance, and AC current functions, along with step-by-step instructions for calibrating DCV, ACV, Resistance, and ACA functions using required equipment like a Fluke 5700A Calibrator.
| Display count | 6000 |
|---|---|
| Power source | 9V battery |
| Maximum input voltage (CAT III) | 1000V |
| Battery Life | 180 hours typical (alkaline) |
| Operating temperature | 0 to +50°C |
| Weight (with battery) | 230g |
The accuracy is +(1.5% reading + 3 digits) for ranges up to 750V and +(1% reading + 2 digits) for higher ranges.
The typical battery life is 180 hours when using alkaline batteries.
