Provide technical information on 61-160 series products, including safety information, specifications, performance test procedures, calibration and calibration adjustment procedures

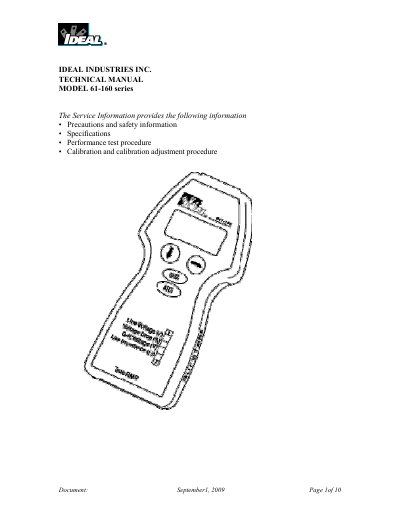

This technical manual provides service information for the Ideal Industries 61-160 Series SureTest meter. It details precautions and safety information, general and electrical specifications, and procedures for performance verification and calibration. The document emphasizes that verification tests and calibration should only be performed by qualified personnel.
| Operating Range | 108 to 264VAC |
|---|---|
| Voltage RMS | 85 to 132VAC (61-165), 85 to 265 (61-164) |
| Impedance Range | 0.00 Ω to 2.99 Ω |
| GFCI Trip Current | Between 6mA to 9mA |
| GFCI Trip Time | 1ms to 6500ms |
| Safety Rating | UL3111, IEC 1010-1 Cat III @ 150V AC RMS |
Only qualified personnel should perform these procedures to avoid shock or injury.
Follow standard practices for handling static sensitive devices as the product contains parts that can be damaged by static charge.
A constant load of 8 to 10 amps at 1500W, a high accuracy True RMS voltage meter, and an AC current meter.
