Ideal 61-320/322/324 Multimeter Service Manual

This technical manual provides information on the specifications, basic maintenance, performance tests, and calibration procedures of the IDEAL INDUSTRIES, INC. multimeters.

Brand: IDEAL
Category: multimeter
Document type: Service Manual
Language: English
Pages: 21
File format: PDF
File size: 568 KB
Published: 04 July, 2012
Updated: 29 September, 2023
MD5 checksum: 864D8F7173729BEF28A6F16A85E633CB
PDF: Ideal 61-320/322/324 Multimeter Service Manual PDF

About this manual

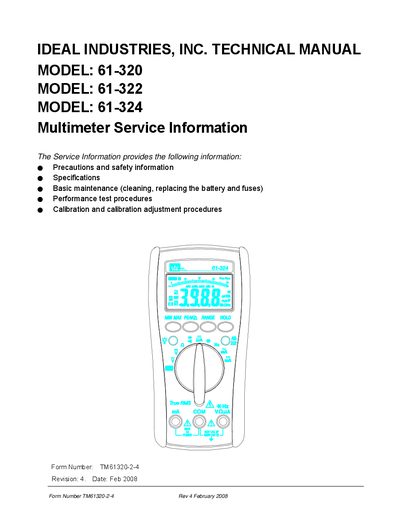

This document is a technical service manual for the Ideal 61-320, 61-322, and 61-324 multimeter models. It provides essential information for qualified personnel, including safety precautions, general and measurement specifications, and required equipment for servicing.

What's inside

Precautions and Safety Information
Specifications
Basic Maintenance
Performance Tests
Calibration
Symbols

Specifications

Display count	3 3/4
Numeric update rate	1.5 times / sec
Power source (61-320)	1.5Vx2 batteries
Maximum input voltage	1000V CAT III

Frequently asked questions

Who is qualified to perform verification tests or calibration?

Only qualified personnel should perform these procedures to avoid shock or injury.

What happens if the meter idles for more than 30 minutes?

The meter automatically turns the power off.

What is the continuity response time?

The response time is approximately 100 msec.
