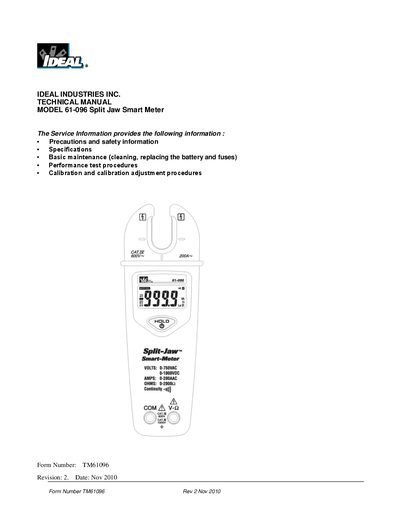

This document is the technical manual of 61-096 Split Jaw Smart Meter, which introduces the product's specifications, maintenance, performance testing and calibration.
This document is a technical service manual for the Ideal 61-096 Split-Jaw Smart Meter. It provides essential information for qualified personnel, including safety precautions, symbols, and detailed specifications for voltage, current, and resistance measurements. The manual outlines the physical and environmental characteristics of the device, such as dimensions, weight, and operating temperature ranges.
| Display count | 6000 |
|---|---|
| Numeric update rate | 5 times / sec |
| Power source | 9V battery |
| Maximum input voltage | 1000V CAT III |
| Battery Life | 180 hours typical |
| DC/AC Volts Accuracy | +(1.5% reading + 3 digits) |
| AC Current Range | 0.6A ~ 200.0A |
| Dimensions | 84mmx188mmx41mm |
| Weight | 230g |
Only qualified personnel should perform these procedures to avoid shock or injury.
The maximum input voltage is 1000V CAT III between V and COM.
The battery life is 180 hours typical when using alkaline batteries.
The meter operates within a temperature range of 0 to +50°C.
