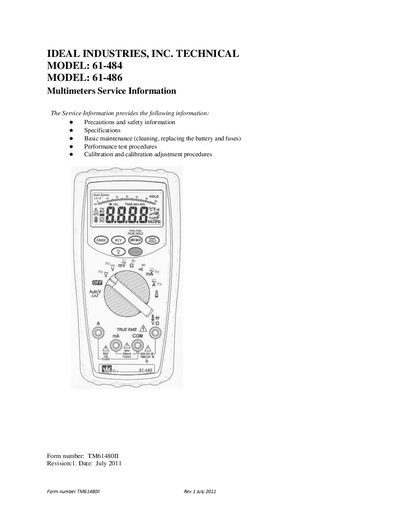

This document provides service information for the IDEAL INDUSTRIES, INC. technical models 61-484 and 61-486 multimeters. It includes precautions, specifications, basic maintenance, performance test procedures, calibration, and calibration adjustment procedures.
This document provides technical service information for the IDEAL 61-484 and 61-486 digital multimeters. It is intended for qualified personnel and covers precautions, safety information, and symbols used on the device. The manual details general specifications, measurement characteristics for various functions including DC/AC voltage, current, resistance, capacitance, and diode testing. It also outlines physical and environmental characteristics and required equipment for testing.
| Display count | 6000 |
|---|---|
| Numeric update rate | 3 times / sec |
| Automatic power-off time | 20 minutes |
| Input Impedance (DC Voltage) | 10MΩ |
| Frequency Response (AC Voltage) | 50 ~ 1kHz |
| Battery Life | 180 hours typical |
The information provided in this document is for the use of qualified personnel only.
The meter provides overload protection of AC/DC 1000V.
