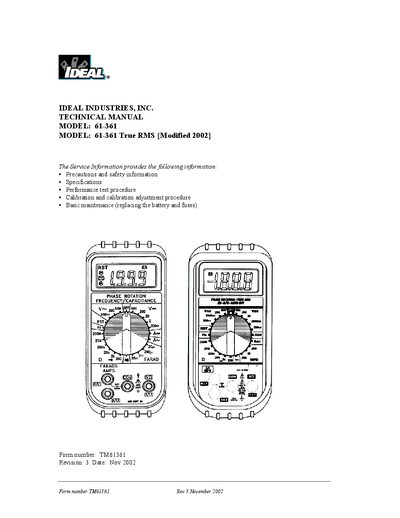

This document is a technical service manual for the IDEAL 61-361 and 61-361 True RMS multimeters. It provides detailed specifications for voltage, current, resistance, capacitance, and phase measurement functions. The manual includes performance verification tables with specific input limits and high/low limits for various ranges.
| Display Count | 2000 count |
|---|---|
| Sampling Rate | 3 time/second |
| Operating Temperature | 0°C to 50°C |
| Auto Power Off | Approximately 25 minutes |
| Dimensions | 4.0"H x 7.5"W x 2.5"D |
| Weight | Approximately 18.0 oz. |
| Safety Standard | UL1244, IEC 1010-1 Cat III |
The battery must measure a minimum of 7.5V DC before beginning performance tests.
It is recommended that all IDEAL meters undergo calibration on an annual basis.
An alkaline type NEDA #1604 is recommended.
If the meter indicates an "OK" message, rotation is Clockwise; if "ER", it is Counter Clockwise.
