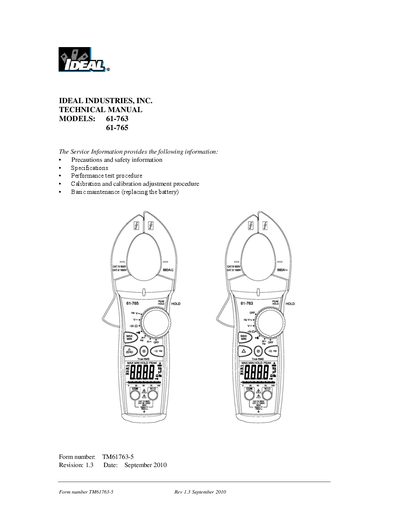

This document is the IDEAL INDUSTRIES, INC. technical manual, which includes precautions, safety information, specifications, performance test procedures, calibration and calibration adjustment procedures, basic maintenance (replacing the battery), etc. for models 61-763 and 61-765.
This document is a technical service manual for the Ideal Industries Models 61-763 and 61-765 digital multimeters. It provides essential information for qualified personnel regarding safety precautions, certifications, and general operating characteristics.
The manual details specific electrical specifications including voltage, current, resistance, capacitance, frequency, and continuity ranges with accuracy data. It also outlines performance verification procedures using a calibrator to ensure the meters function correctly within specified limits.
| Display Count | 9999 count, maximum reading 9999 |
|---|---|
| Power Source | 9V Battery (NEDA 1604) |
| Battery Life | 100 hours typical (alkaline) |
| Auto Power Off | Approximately 30 minutes |
| AC Voltage Range (Model 61-763) | 0.0V ~ 600.0V, 45Hz - 100Hz |
| Resistance Range (Model 61-763) | 9.00 ~ 999.90, 10002 ~ 99990 |
| Frequency Range | 20.0Hz ~ 400.0Hz (Auto-ranging) |
The typical battery life is 100 hours when using alkaline batteries.
The meter will beep and light an LED to alert the user of dangerous voltage.
