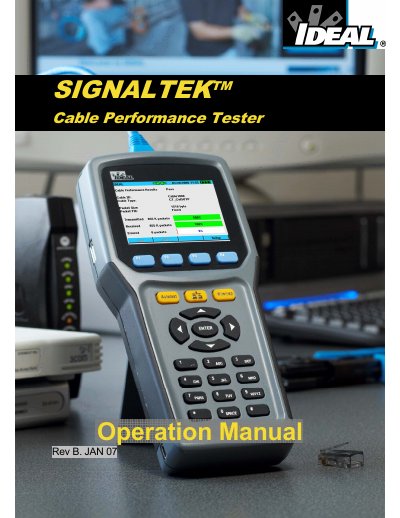

Ideal Industries SIGNALTEK Cable Performance Tester Operation Manual

This document is about IDEAL INDUSTRIES SIGNALTEKTM Cable Performance Tester Operation Manual

Brand: IDEAL
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 76
File format: PDF
File size: 1.2 MB
Published: 04 July, 2012
Updated: 01 October, 2023
MD5 checksum: AF9632334A35B4486FE83B551B889209
PDF: Ideal Industries SIGNALTEK Cable Performance Tester Operation Manual PDF

About this manual

The Ideal Industries SIGNALTEK Cable Performance Tester is a unique device designed to verify network performance and troubleshoot connectivity issues. It utilizes two test handsets to perform full-duplex performance testing of cables at Ethernet speeds up to 1 Gigabit per second. The device supports testing cable links in three conditions: terminated with a remote SIGNALTEK device, active LAN links terminating to a hub or switch, and single-ended links not terminated to a device.

What's inside

Introduction
Setup and Configuration
Test Storage and Management
Running Autotests
Test Results
Fiber Optic Testing
Troubleshooting
Care and Calibration
Specifications

Specifications

Max Ethernet Speed	1 Gigabit per second (1Gbps)
Cable Length Measurement	140m/460ft
Standby Battery Life	30 days
Cable Testing Battery Life	30 hours
Monitoring Battery Life	4 hours
Test Standards	IEEE 802.3

Frequently asked questions

What types of cables can the SIGNALTEK test?

The SIGNALTEK can test Voice/phone cable (USOC/RJ11/RJ12), Data cable (STP/UTP RJ45 for CAT 3/5e/6/6a/7), and Coax cable.

Does the SIGNALTEK require special software to view reports?

No, the SIGNALTEK generates performance reports that can be viewed and printed with any web browser.

Download PDF (1.2 MB)
