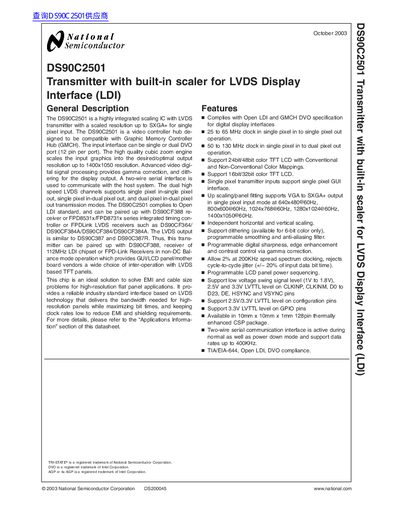

The DS90C2501 is a highly integrated scaling IC with LVDS transmitter with a scaled resolution up to SXGA+ for single pixel input.
The DS90C2501 is a highly integrated scaling IC featuring an LVDS transmitter and a scaled resolution up to SXGA+ for single pixel input. Designed to be compatible with Graphic Memory Controller Hub (GMCH), it serves as a video controller hub for high-resolution flat panel applications. The device supports up to 1400x1050 resolution and includes advanced digital signal processing for gamma correction and dithering.
| Maximum Output Resolution | 1400x1050 |
|---|---|
| Clock Frequency (Single Pixel In/Out) | 25 to 65 MHz |
| Clock Frequency (Single Pixel In/Dual Pixel Out) | 50 to 130 MHz |
| Package Type | 128pin CSP |
| Supply Voltage | 2.5V to 3.6V |
| Operating Temperature | 0°C to +70°C |
| Compliance Standards | Open LDI, GMCH DVO |
The maximum operating case temperature is 97°C.
The maximum supply voltage for the Vecav pin is 36 V.
The maximum operating free air temperature is +70 C.
