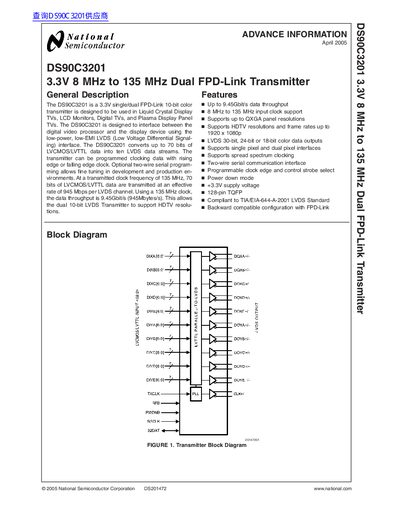

The DS90C3201 is a 3.3V single/dual FPD-Link 10-bit color transmitter designed for use in Liquid Crystal Display TVs, LCD Monitors, Digital TVs, and Plasma Display Panel TVs. The DS90C3201 is designed to interface between the digital video processor and the display device using the low-power, low-EMI LVDS (Low Voltage Differential Signaling) interface. The DS90C3201 converts up to 70 bits of LVCMOS/LVTTL data into ten LVDS data streams. The transmitter can be programmed clocking data with rising edge or falling edge clock. Optional two-wire serial programming allows fine tuning in development and production environments. At a transmitted clock frequency of 135 MHz, 70 bits of LVCMOS/LVTTL data are transmitted at an effective rate of 945 Mbps per LVDS channel. Using a 135 MHz clock, the data throughput is 9.45 Gbit/s (945 Mbytes/s). This allows the dual 10-bit LVDS Transmitter to support HDTV resolutions.
The DS90C3201 is a 3.3V single/dual FPD-Link 10-bit color transmitter designed for use in LCD TVs, monitors, and digital displays. It interfaces between a digital video processor and the display device using a low-power LVDS interface.
| Supply Voltage | +3.3V |
|---|---|
| Input Clock Range | 8 MHz to 135 MHz |
| Data Throughput | Up to 9.45Gbit/s |
| Package Type | 128-pin TQFP |
The DS90C3201 is a 3.3V single/dual FPD-Link 10-bit color transmitter designed to interface between a digital video processor and a display device.
The device supports input clocks ranging from 8 MHz to 135 MHz.
At a transmitted clock frequency of 135 MHz, the transmitter achieves an effective rate of 945 Mbps per LVDS channel.
