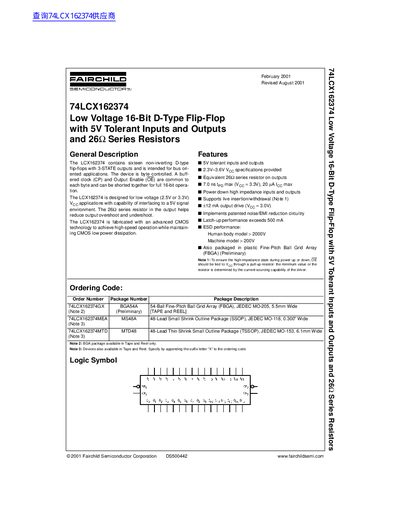

The 74LCX162374 is a 16-bit D-type flip-flop with 5V tolerant inputs and outputs and 26Ω series resistors. The device is designed for low voltage (2.5V or 3.3V) VCC applications with capability of interfacing to a 5V signal environment. The 26Ω series resistor in the output helps reduce output overshoot and undershoot. The device is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
The Fairchild Semiconductor 74LCX162374 is a low voltage 16-bit D-type flip-flop designed for bus-oriented applications. It contains sixteen non-inverting flip-flops with 3-STATE outputs and is byte-controlled, allowing individual byte operation or full 16-bit operation by shorting control pins. The device features 5V tolerant inputs and outputs, making it suitable for interfacing with 5V signal environments while operating on 2.5V or 3.3V supplies. It includes equivalent 26 Ω series resistors on outputs to reduce overshoot and undershoot.
| Supply Voltage (Operating) | 2.0V to 3.6V |
|---|---|
| Input Voltage (DC) | -0.5V to +7.0V |
| Output Drive Current | ±12 mA |
| Maximum Clock Frequency | 170 MHz |
| Propagation Delay (Max) | 7.0 ns |
| Operating Temperature | -40°C to +85°C |
| Package Types | FBGA, SSOP, TSSOP |
The device supports a supply voltage range of 2.0V to 3.6V for normal operation.
Yes, the device features 5V tolerant inputs and outputs, allowing interfacing with 5V signal environments.
The 74LCX162374 contains sixteen non-inverting D-type flip-flops.
