74HC/HCT4316 are high-speed Si-gate CMOS devices. They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT4316 have four independent analog switches. Each switch has two input/output terminals (nY, nZ) and an active HIGH select input (nS). When the enable input (E) is HIGH, all four analog switches are turned off. Current through a switch will not cause additional VCC current provided the voltage at the terminals of the switch is maintained within the supply voltage range; VCC >> (VY, VZ) >> VEE. Inputs nY and nZ are electrically equivalent terminals. VCC and GND are the supply voltage pins for the digital control inputs (E and nS). The VCC to GND ranges are 2.0 V to 5.5 V.

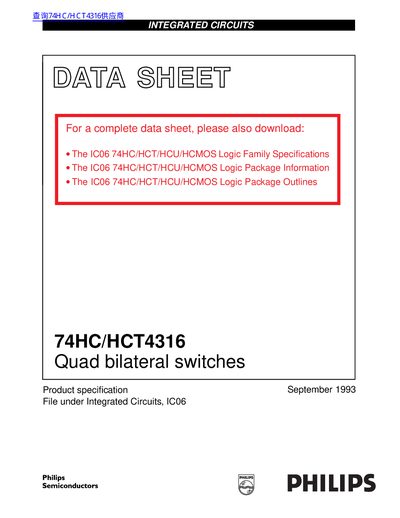

This document is a product specification datasheet for the Philips 74HC/HCT4316, a high-speed Si-gate CMOS device containing four independent analog switches. The component is designed for applications such as signal gating, modulation, demodulation, and chopper circuits, featuring low ON resistance and logic level translation capabilities.
| Number of independent analog switches | Four |
|---|---|
| Supply voltage range (HCT) | 4.5 to 5.5 V |
| Operating ambient temperature range | -40 to +125 °C |
| Max. switch capacitance | 5 pF |
Yes, it can enable 5 V logic to communicate with +5 V analog signals.
The voltage drop across the bidirectional switch must not exceed 0.4 V to avoid drawing Vcc current.
