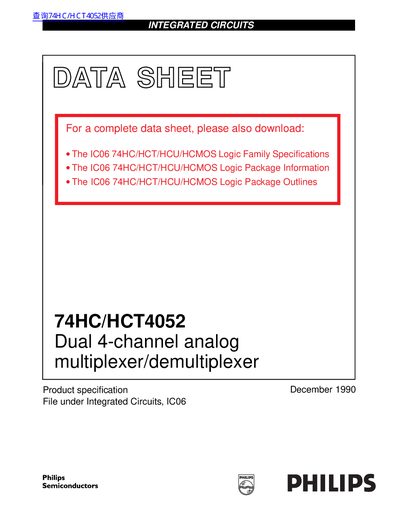

This document describes the features and characteristics of the 74HC/HCT4052 dual 4-channel analog multiplexer/demultiplexer, including wide analog input voltage range, low ON resistance, logic level translation, etc.
The document is a product specification (datasheet) for the 74HC/HCT4052 integrated circuit. It describes the device as high-speed Si-gate CMOS devices that are pin compatible with the '4052' of the '4000B' series and comply with JEDEC standard no. 7A.
The datasheet details features such as a wide analog input voltage range, low ON resistance, and logic level translation capabilities. It includes quick reference data, functional descriptions, pin configurations, application examples, electrical ratings, recommended operating conditions, DC and AC characteristics tables, test circuit diagrams, and package outline references.
| Device Type | Dual 4-channel analog multiplexer/demultiplexer |
|---|---|
| Supply Voltage Range (HCT) | 4.5 to 5.5 V |
| Max Switch Capacitance (Independent) | 5 pF |
| Max Switch Capacitance (Common) | 12 pF |
It is a dual 4-channel analog multiplexer/demultiplexer.
The enable input is active LOW.
