The 74HC/HCT4040 is a high-speed 12-stage binary ripple counter with standard output capability and MSI category.

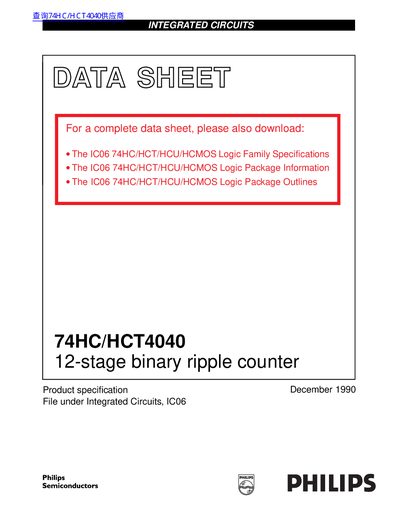

The document provides product specifications for the Philips 74HC/HCT4040 integrated circuit. This device is a high-speed Si-gate CMOS component that functions as a 12-stage binary ripple counter, featuring pin compatibility with the '4000B' series.
Key features include a clock input (CP) and an overriding asynchronous master reset input (MR). The counter advances on the HIGH-to-LOW transition of the clock signal. Each stage operates as a static toggle flip-flop, providing twelve parallel outputs ranging from Qo to Q11.
| Device Type | 12-stage binary ripple counter |
|---|---|
| Technology | high-speed Si-gate CMOS |
| Logic Category | MSI |
| Maximum Clock Frequency (HC) | 90 MHz |
| Clock Input Transition | HIGH-to-LOW |
| Reset Type | asynchronous master reset |
The device is suitable for frequency dividing circuits, time delay circuits, and control counters.
The counter advances on the HIGH-to-LOW transition of the clock input (CP).
