The 74HC/HCT175 is a high-performance Si-gate CMOS device with four edge-triggered D flip-flops with individual D inputs and both Q and Q outputs.

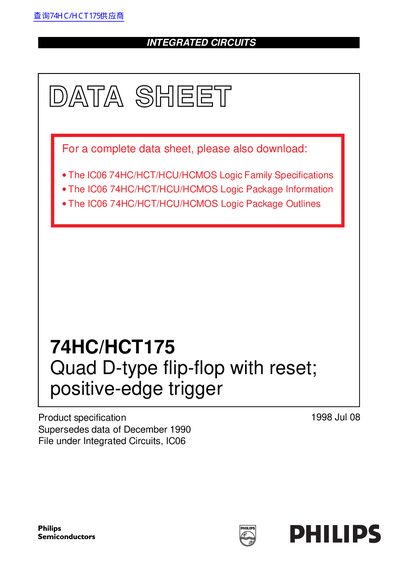

This document is a product specification datasheet for the Philips 74HC/HCT175 integrated circuit. The device consists of four edge-triggered D flip-flops with individual data inputs (D) and both true (Q) and complement (Q-bar) outputs. It features common clock (CP) and master reset (MR) inputs that control all storage elements simultaneously.
The 74HC/HCT175 are high-speed silicon-gate CMOS devices designed to be pin-compatible with low-power Schottky TTL (LSTTL). They comply with JEDEC standard no. 7A and are available in various plastic packages including DIP, SOIC, SSOP, and TSSOP.
| Number of Flip-Flops | Four edge-triggered D flip-flops |
|---|---|
| Logic Category | MSI |
| Operating Temperature Range (HC) | -40 to +85 °C |
The device has both Q and Q-bar (complement) outputs for each flip-flop.
All flip-flops can be cleared simultaneously by applying a LOW voltage level to the master reset (MR) input.
