The 74HC/HCT365 are high-speed Si-gate CMOS devices with non-inverting outputs, bus driver capability and MSI ICC category.

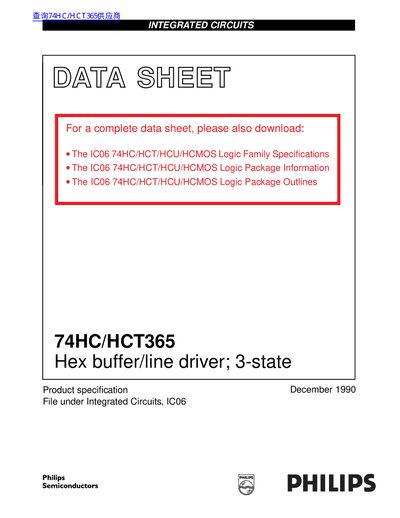

The Philips 74HC/HCT365 is a hex non-inverting buffer/line driver featuring 3-state outputs controlled by output enable inputs. These high-speed Si-gate CMOS devices are pin compatible with low power Schottky TTL (LSTTL) and are specified in compliance with JEDEC standard no. 7A. The device is identical to the 74HC/HCT366 but provides non-inverting outputs.
| Input capacitance | 3.5 pF |
|---|---|
| Power dissipation capacitance per buffer | 40 pF |
| Supply voltage range (HC) | GND to Vcc |
| Supply voltage range (HCT) | GND to Voc - 1.5 V |
| Operating temperature (HC) | -40 to +85 °C |
| Operating temperature (HCT) | -40 to +125 °C |
The device operates with a supply voltage ranging from GND up to Vcc.
The device contains six identical circuits configured as a hex buffer/line driver.
