Philips 74HC/HCT174 Hex D-type Flip-Flop Datasheet

The 74HC/HCT174 is a high-speed, low-power CMOS device that is pin compatible with low power Schottky TTL (LSTTL). The device features six edge-triggered D-type flip-flops with individual D inputs and Q outputs. The common clock (CP) and master reset (MR) inputs simultaneously load and reset (clear) all flip-flops. The register is fully edge-triggered. The state of each D input, one set-up time prior to the LOW-to-HIGH clock transition, is transferred to the corresponding output of the flip-flop. A LOW level on the MR input forces all outputs LOW, independently of clock or data inputs. The device is useful for applications requiring true outputs only and clock and master reset inputs that are common to all storage elements.

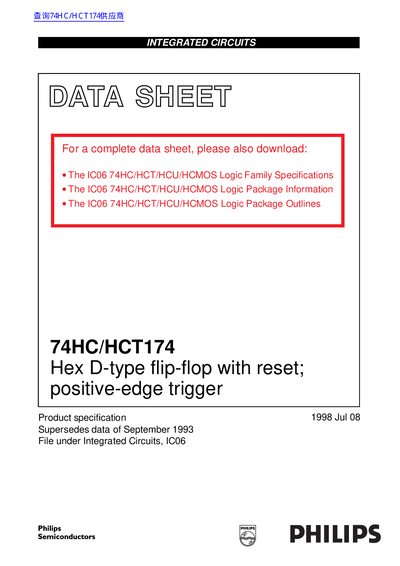

Philips 74HC/HCT174 Hex D-type Flip-Flop Datasheet - cover page
Brand
Philips
Category
INTEGRATED CIRCUITS
Document type
Datasheet
Language
English
Pages
13
File format
PDF
File size
86 KB
Published
02 July, 2012
Updated
30 September, 2023
Model
74HC
MD5 checksum
BAC5BC6FDFDD79129FEE7F6CA909BC24

About this manual

The Philips 74HC/HCT174 is a high-speed Si-gate CMOS device containing six edge-triggered D-type flip-flops with individual D inputs and Q outputs. It features a common clock (CP) and master reset (MR) input that load and reset all flip-flops simultaneously. The device is pin compatible with low power Schottky TTL (LSTTL) and is specified in compliance with JEDEC standard no. 7A.

What's inside

  • Features
  • General Description
  • Quick Reference Data
  • Ordering Information
  • Pin Description
  • Functional Diagram
  • DC Characteristics
  • AC Waveforms
  • Package Outlines

Specifications

Number of flip-flopsSix
Trigger typePositive-edge
Reset typeAsynchronous master reset
Propagation delay (CP to Qn)17 ns (typical)
Maximum clock frequency (HC)99 MHz
Maximum clock frequency (HCT)69 MHz
Supply voltage range (HC)GND to Vcc
Supply voltage range (HCT)GND to Vcc-1.5 V

Frequently asked questions

What is the function of the MR input?

A LOW level on the MR input forces all outputs LOW, independently of clock or data inputs.

How are the flip-flops triggered?

The device is fully edge-triggered, transferring the D input state to the output on the LOW-to-HIGH clock transition.
