The 74HC/HCT368 is a high-performance, low-power CMOS logic device with inverting outputs, bus driver capability, and is suitable for MSI applications.

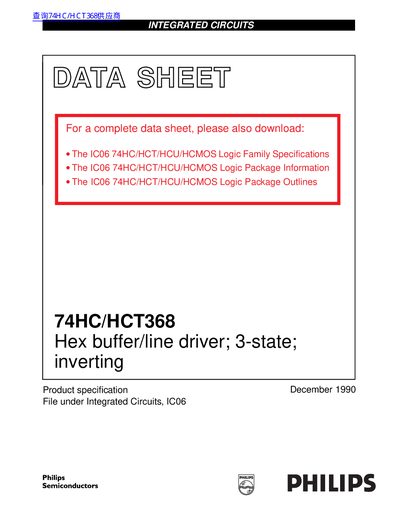

The Philips 74HC/HCT368 is a high-speed Si-gate CMOS device featuring six identical inverting buffer circuits with 3-state outputs. These outputs are controlled by active-low output enable inputs, allowing the device to function as a bus driver. The component is pin compatible with low power Schottky TTL (LSTTL) and complies with JEDEC standard no. 7A.
| Propagation delay (nA to nY) | 9 ns (typical) |
|---|---|
| Input capacitance | 3.5 pF |
| Power dissipation capacitance per buffer | 30 pF |
| Operating temperature range (74HC) | -40 to +85 °C |
| Operating temperature range (74HCT) | -40 to +125 °C |
| Output capability | Bus driver |
| Icc category | MSI |
The 74HC/HCT368 is identical to the 74HC/HCT367 but has inverting outputs.
Yes, the device features inverting outputs.
The device contains six identical circuits.
