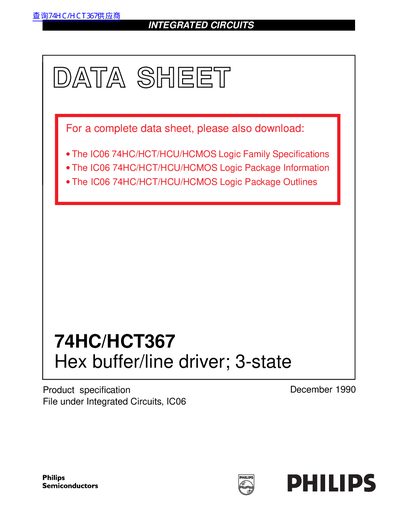

PHILIPS 74HC/HCT367 Hex buffer/line driver; 3-state handbook

The 74HC/HCT367 is a high-performance silicon-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7. The 74HC/HCT367 is a hex non-inverting buffer/line drivers with 3-state outputs. The 3-state outputs (nY) are controlled by the output enable inputs (1OE, 2OE). A HIGH on nOE causes the outputs to assume a high impedance OFF-state.
