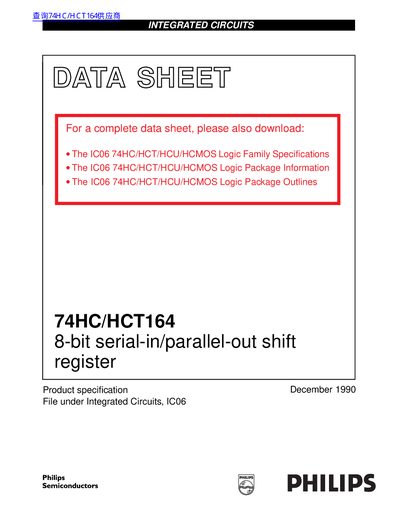

This document is the datasheet of 74HC/HCT164
The Philips 74HC/HCT164 is a high-speed Si-gate CMOS device that functions as an 8-bit serial-in/parallel-out shift register. It features gated serial data inputs and an asynchronous master reset, allowing for efficient data entry and clearing of the register stages.
| Device Type | 8-bit edge-triggered shift register |
|---|---|
| Technology | High-speed Si-gate CMOS |
| Logic Category | MSI |
Data is entered serially through one of two inputs, Dsa or Dep.
A LOW level on the master reset input overrides all other inputs and clears the register asynchronously.
