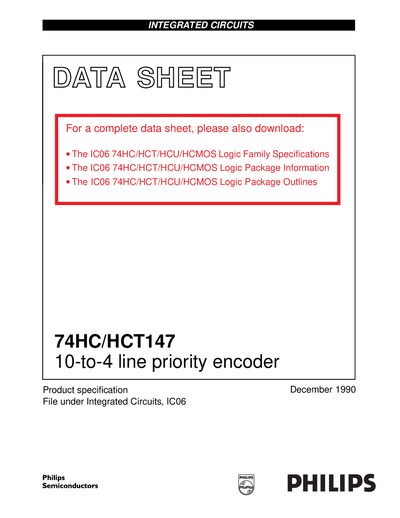

74HC/HCT147 10-to-4 line priority encoder datasheet introduces the features and characteristics of this product.
The 74HC/HCT147 is a high-speed Si-gate CMOS device designed as a 10-to-4 line priority encoder. It encodes nine active LOW decimal inputs (A9 to A0) into four active LOW BCD outputs (Y3 to Y0). The device features input priority where the highest priority input determines the output when multiple lines are active simultaneously, with input A9 having the highest priority.
It encodes nine active LOW decimal inputs into four active LOW BCD outputs.
The device encodes 10-line decimal inputs into a 4-line BCD output.
The maximum supply voltage for the 74HCT version is 3 V.
Input line Ag has the highest priority among all active inputs.
