The 74HC/HCT132 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A.

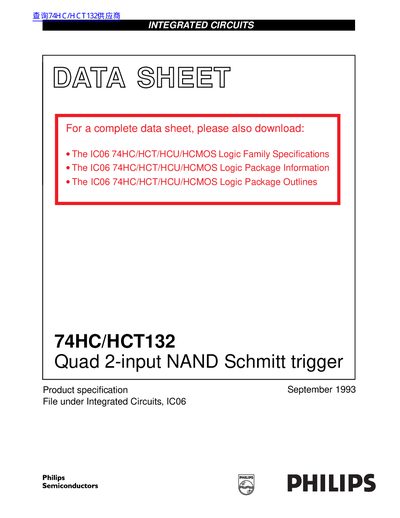

This document is a product specification datasheet for the Philips 74HC/HCT132, a high-speed Si-gate CMOS integrated circuit. The device contains four 2-input NAND gates with Schmitt trigger inputs, designed to transform slowly changing input signals into sharply defined, jitter-free output signals. It is pin compatible with low power Schottky TTL (LSTTL).
| Number of gates | Four 2-input NAND gates |
|---|---|
| Logic category | SSI |
It contains four 2-input NAND gates which accept standard input signals and transform slowly changing signals into sharply defined outputs.
The device is suitable for use in wave and pulse shapers, astable multivibrators, and monostable multivibrators.
